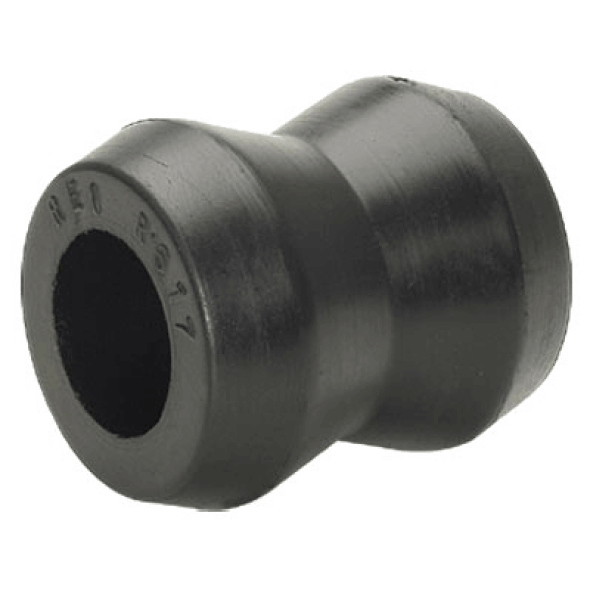

R-617 Suspensão dianteira e traseira (batentes, buchas do amortecedor, estabilizador e pino do tirante)

Sustituye Nº Orig. TJG.413.435

Buje superior e inferior del agujero del amortiguador del eje de la suspensión delantera y trasera.

Dimensiones: Ext. 47mm x 39mm x Int. 25,5mm x Largo 55mm

VW:

12.140 12.140H 12.140T 12.180 13.150 13.170 13.170E 13.180 13.190 14.140 14.150 14.180 14.200 14.220 15.170 15.170E 15.180 15.190 15.190E 16.170 16.170BT 16.200 16.210H 16.220 16.300 17.210 17.220 17.250E 17.300 17.310 22.140 22.160 22.210H 23.250E 24.220 24.250 35.300

Ómnibus:

15.190OD 16.180CO 16.210CO 17.210EOD 17.210OD 17.230EOD

Delivery:

5.150 8.160 9.160 10.160

Worker:

13.170 13.180 13.190 15.170 15.180E 15.190 15.190E 17.180 17.190 17.220 17.230 17.250E 23.230 23.250E 24.220 24.250E 26.260E 31.260E

Constellation:

13.180 13.190 14.190 15.180 15.190 17.190 17.230 17.250E 17.260E 17.280 17.320E 17.330 19.320E 19.330 19.360 19.370 19.390 19.420 23.230 24.250E 24.260E 24.280 24.320E 24.330 25.320E 25.330 25.360 25.370E 25.390 25.420 26.260E 26.280 26.330 26.360 26.370E 26.390 26.420 31.260 31.280 31.320E 31.330 31.370 31.390

Volvo

Sustituye Nº Orig. 6.882.394

Buje superior del agujero del amortiguador del eje de la suspensión delantera y trasera.

Dimensiones: Ext. 47mm x 39mm x Int. 25,5mm x Largo 55mm

Volvo:

N 10 N 12 NL 10 NL 12

Ómnibus:

B 58 B 58E
