R-767 Front and rear suspension (stops, shock absorber bushings, stabilizer rod and pin)

Package with 1 part

Weight: 1,26 (kg)

(R-767) compatible with vehicles from the following manufacturers: Mercedes Benz.

Applications:
- Front and rear suspension (stops, shock absorber bushings, stabilizer rod and pin)

manufacturers

Mercedes Benz

Access Catalog

Mercedes Benz

Replace OE Number 000.330.0250 / 000.332.0450

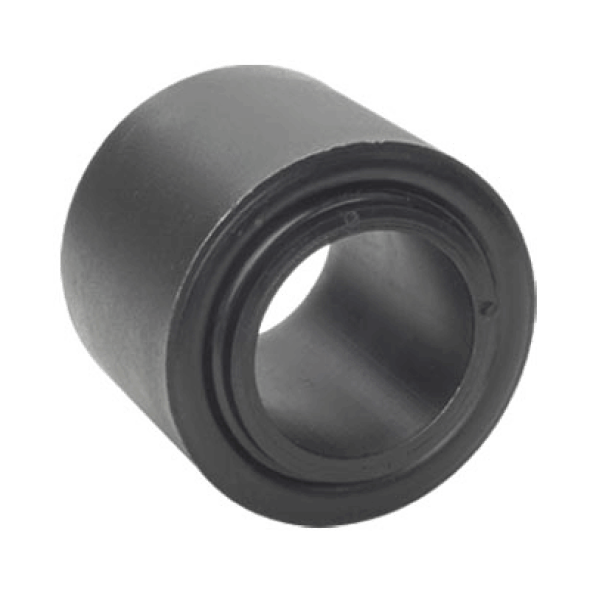

Tensoring bar bushing of front and rear suspension axle.

ATENTION: Mount bushing by the side of the chamfer guide of bar hole.

Washer hole 12 mm, aply chemical lock (locking adhesive) on the 3 fixation holes and apply torque of 11 kgfm.

Washer hole 14 mm, aply chemical lock (locking adhesive) on the 3 fixation holes and apply torque from 14 to 15 kgfm.

Dimensions: Outer 91,7mm x Inner 54,2mm x Lenght 85mm

Bus:

O 370 O 371 O 371R O 371RS O 371RSD O 371RSE O 371RSL O 374RSD O 400R O 400RS O 400RSD O 400RSD O 400RSDH O 400RSE O 400RSE O 400RSH O 400RSL O 400RSLH O 400UP O 400UPA O 500M/1417S O 500M/1725 O 500M/1728 O 500U/1725

Bus:

O 371 O 371RS O 371RSD O 371RSE O 371RSL O 374RSD O 400 O 400RS O 400RSD O 400RSD O 400RSE O 400RSE O 400RSH O 400RSLH O 400UP O 400UPA O 500M/1725 O 500M/1728 O 500M/1732 O 500U/1725 OH 1421L OH 1621L OH 1623LG OH 1625L OH 1628L OH 1635L
