R-3497

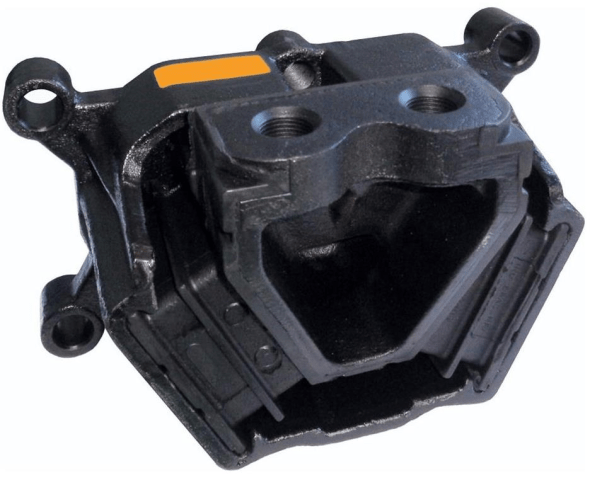

Front cushion motor suspension (Pulley side)

Replace OE Number 958.241.3113

Front engine mount OM 460LA - OM 501LA - OM 502LA.

(Tarja laranja)

Thread M18 x 1,5 and Thread M14x 1,5.

Width mount 115,5 mm. Fixation basis thicknesses da base of the mount on the chassis 20,5 mm.

NOTE: When replacing the engine mount, check the part's original number. If you have any questions, check the chassis number (vehicle identification number) and call the dealership.

Rei suggestion: Replace both mounts (right and left sides).
